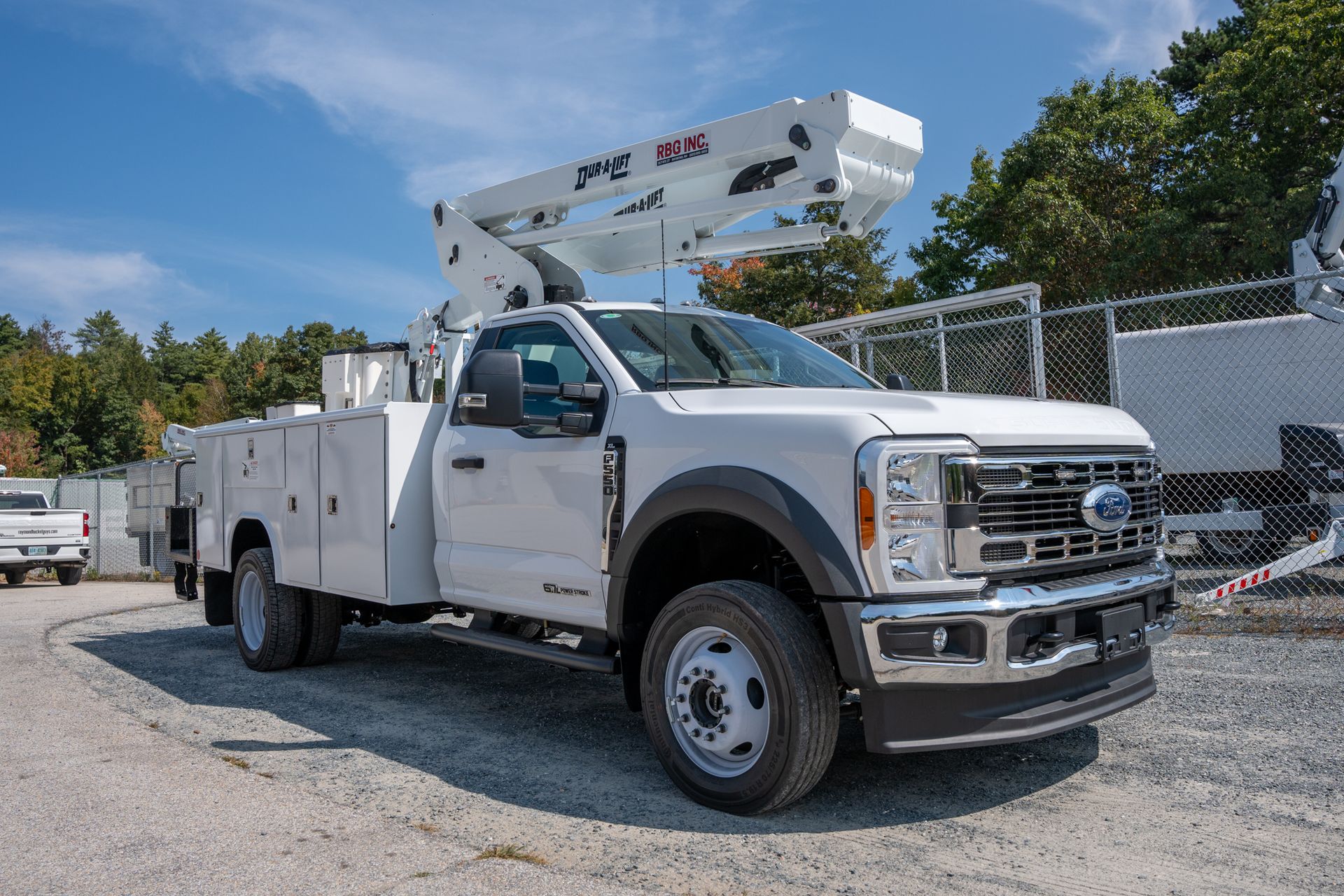

• Telescopic Articulating, Personnel, Single Person Lift
• Working height: 43'
• Height to bottom of platform: 38'
• Side reach: 25' 6"
• Extension boom travel: 110.5"
• Main boom travel: -25° to 75°
• Articulated boom travel: 0° to 82°
• Platform capacity: 400 lbs.

Controls:

• Lower controls with override
• Engine start/stop from the basket
• Rated pressure is 2200 PSI
• Operating pressure is 2000 PSI
• Open center hydraulic system
• Telescoping articulating boom action
• Offset main boom reduces travel height
• Shear ball rotation driven
• Fully enclosed worm gear box
• D.C. backup system

Stabilization:

• No outriggers
• Rear torsion bar
• Front Timbrens
• Tailshelf Counter Weight: 575 lbs.

Interlocks:

• Brake interlock

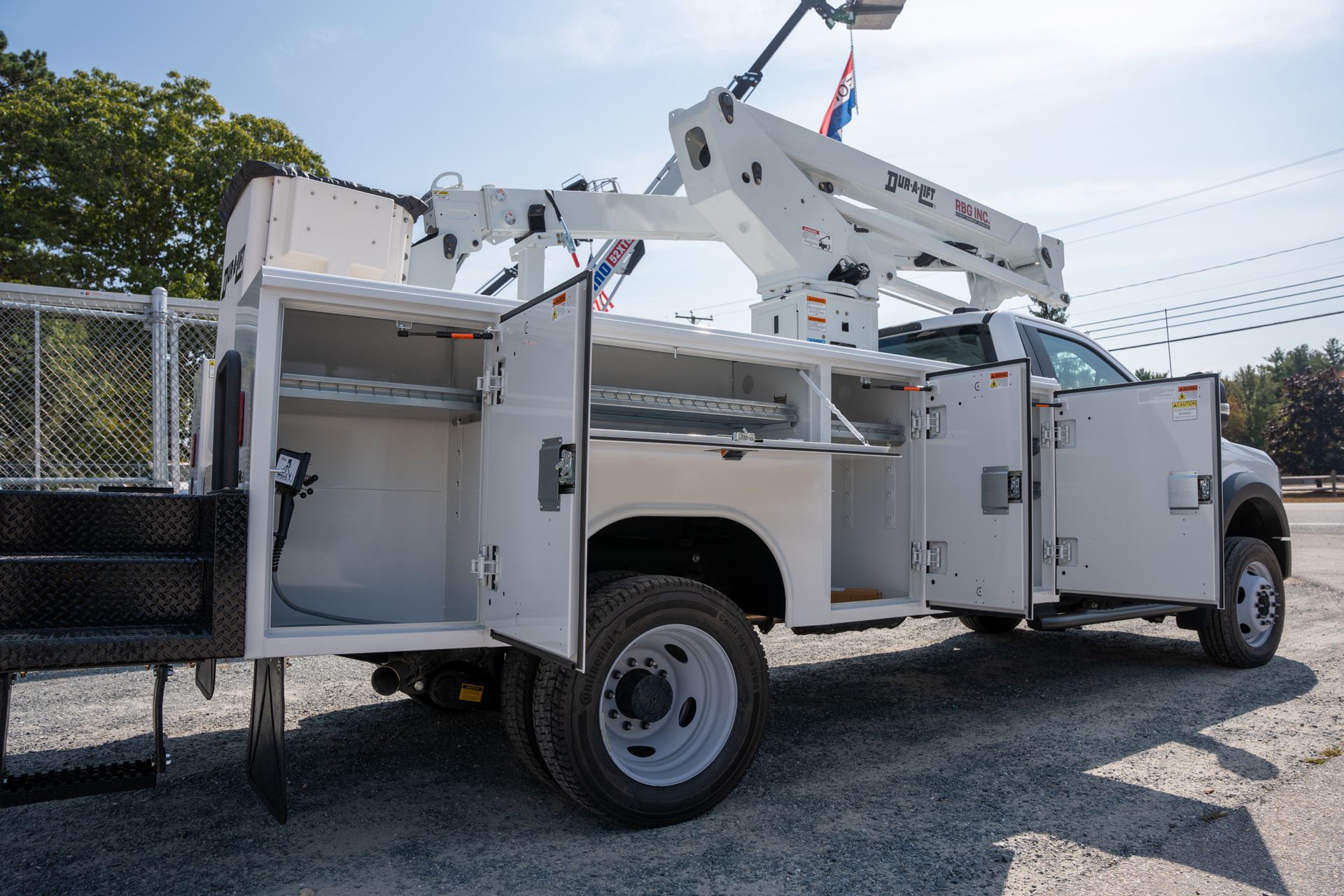

• Reading Steel Service Body
• 132" long x 40" high x 92" wide
• 40" compartment height
• 22" compartment depth
• 24" body mounting height

• Treadplate floor, reading white, stainless steel rotary lock, A60 galvannealed construction, galvanized shelves, hidden hinges, seamless wheelhouse panels, Dual, Pro ® seal system
• Front Compartment #1: 36” wide x 40” high x 22” deep, two (2) adjustable shelves
• Front Compartment #2: 21” wide x 40” high x 22 deep, one (1) adjustable shelf
• Horizontal Compartment: 47” wide x 18” high x 22” deep, one (1) adjustable shelf
• Rear Vertical Compartment: 28.75” wide x 40” high x 22” deep, one (1) adjustable shelf

Curbside Compartmentation:

• Front Compartment #1: 36” wide x 40” high x 22” deep, two (2) adjustable shelves
• Front Compartment #2: 21” wide x 40” high x 22 deep, one (1) adjustable shelf
• Horizontal Compartment: 47” wide x 18” high x 22” deep, one (1) adjustable shelf
• Rear Vertical Compartment: 28.75” wide x 40” high x 22” deep, one (1) adjustable shelf

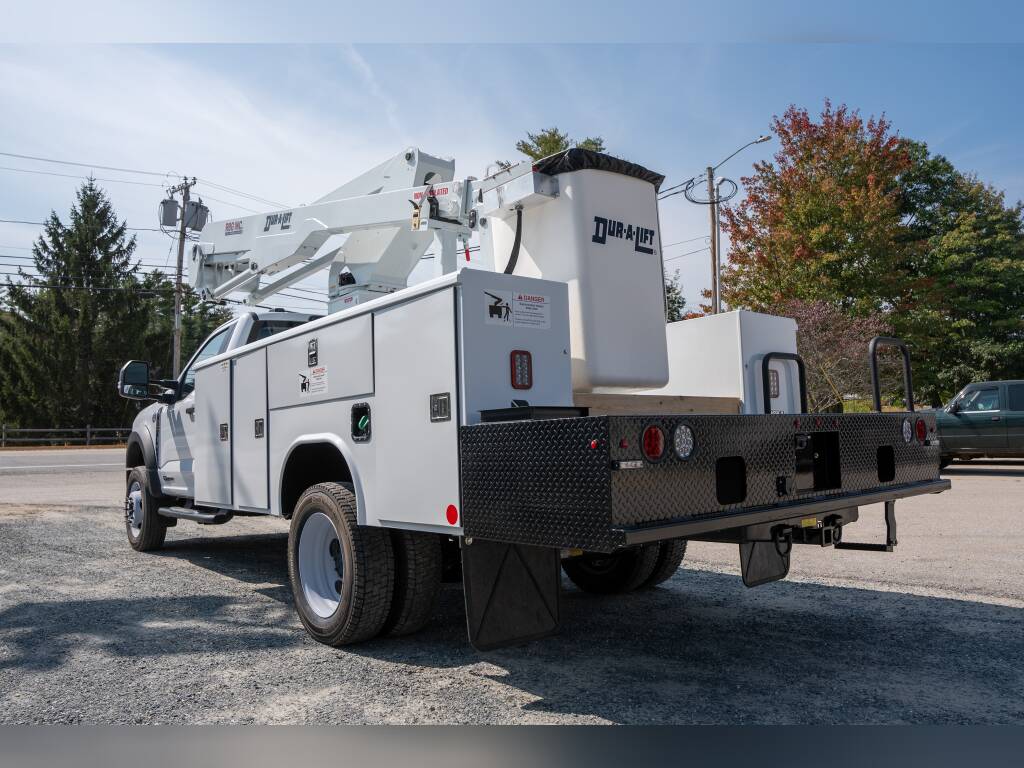

Tailshelf:

• Steel treadplate surfaced, structurally supported, 30 inch deep tailshelf with curbside access steps
• 2x, aluminum pool style grab handles
• Additional flexible step in walkup area
• 14K hitch assembly with a 2" receiver and chain loops
• 7-way RV pin style trailer socket
• Drop-in cone holder located on the top of the rear streetside of the tailshelf

• Two inclinometers mounted on the dash of the truck for easy accessibility while selecting the location to deploy the lift
• Chassis supplied backup camera
• PTO
• Gear style hydraulic pump
• Electrical/Lights
• Smart backup alarm which automatically adjusts between 82-107 dB depending on ambient noise
• Recessed 4" stop/tail/turn and backup LED lights with 3/4" bullet style marker lights and reflectors
