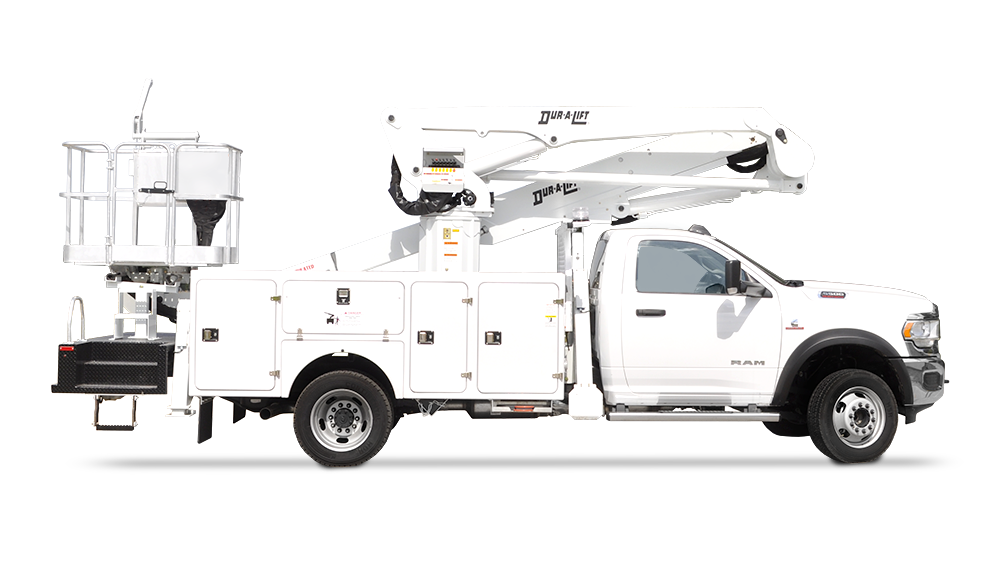

The Dur-A-Lift DPM3 Series offers exceptional versatility with a telescopic articulating boom that reaches up to 60 feet and a side reach of 31 feet, along with options for insulated or non-insulated baskets. With a basket capacity of up to 600 pounds and customizable features like continuous rotation and hydraulic basket leveling, the DPM3 Series is designed to meet all your aerial work needs
- Telescopic articulating bucket truck
- Auxiliary winch lifts up to 150lbs
- 36″x60″ aluminum basket
- Bottom mount basket
- Insulated or non-insulated
- 180-degree basket rotator

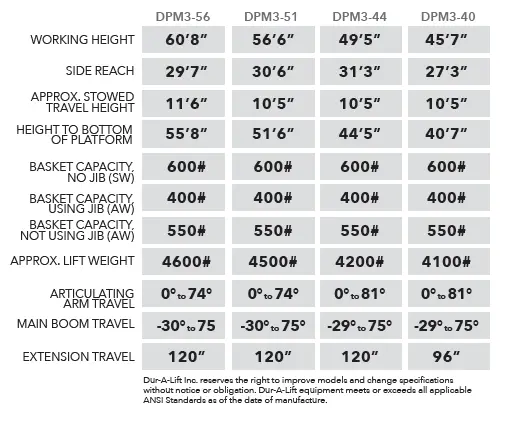

- Max working height range: 45’ 7” – 60’ 8″
- Max side reach range: 27’ 3” – 31’ 3″
- Proportional controls
- Lower override controls
- Engine start/stop from basket
- Basket access from ground
- Compensated upper boom
- Insulated models available in Category D
- Hydraulic basket leveling
- Continuous rotation
- Joystick and lockout controls
- 180º basket rotator
- Outriggers
- Fiberglass main and articulating booms
- Tool circuits
- D.C. backup system
- Non-insulated versions available
- 110 v outlet at basket (non-insulated only)
- 400# basket capacity with jib in use
- 550# basket capacity without jib in use
- Auxiliary winch lifts up to 150 pounds
- 36”x60” aluminum basket
Also available without auxiliary winch.
The DPM3 lift is available in insulated or non-insulated formats.
DPM3 – insulated (Category D)
DPM3S – non-insulated
Ask about available chassis, body, basket, tail shelf, and accessory options to build the perfect bucket truck for your needs. Click the build tab to view DPM2 builds or click request a quote to get started.
