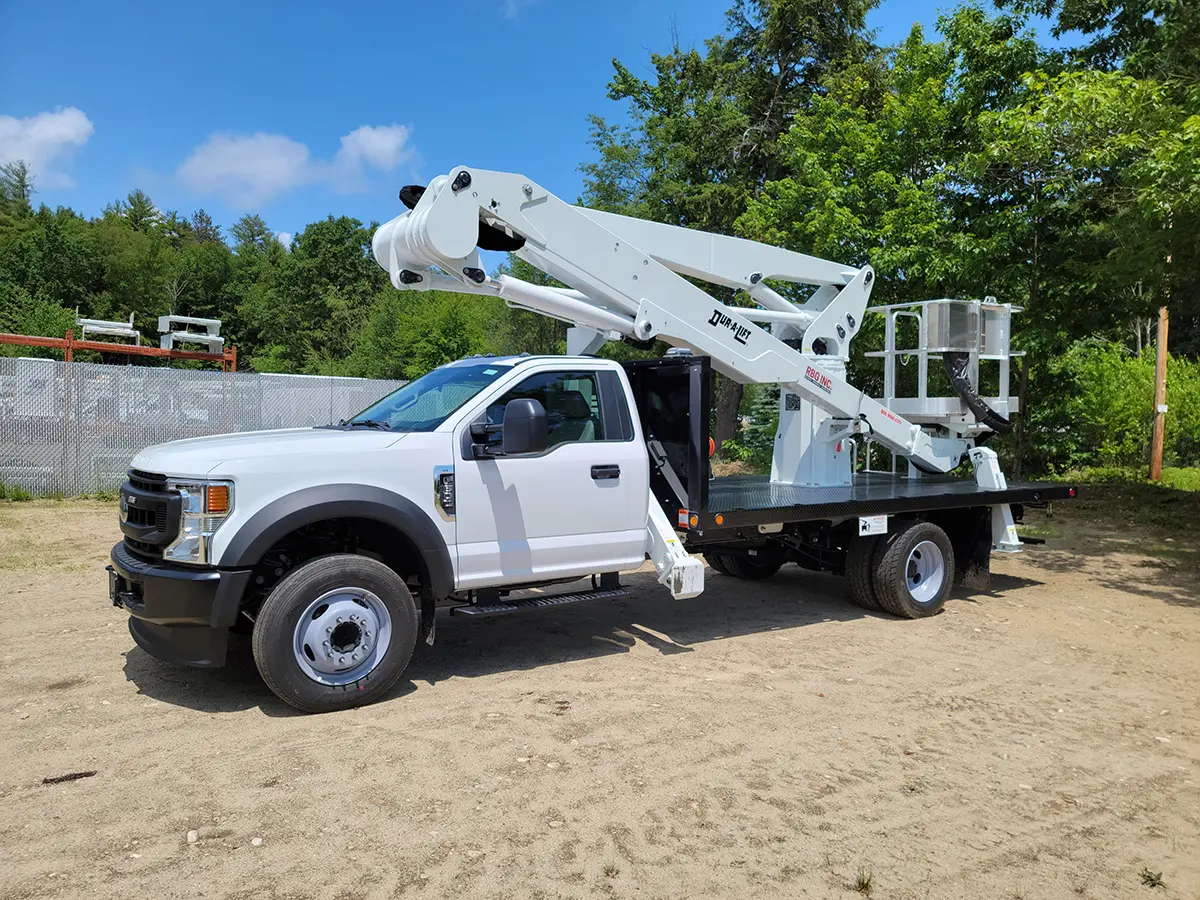

DPM-3-56 Non Insulated 55’8”’ telescopic / articulating aerial platform lift.

• 60’8” of working height
• 29’7” of side reach
• -30 degree to +75 degree main boom travel
• 0 degree to +74 degree lower boom travel
• Platform capacity of 600 lbs
• Bucket options and controls to include:
• 36” x 60” x 42” Aluminum Walkin Basket
• Hinged/latching bucket door
• 4 Axis Single Hand Control
• 12VDC Emergency Power
• Engine Start/Stop
• Electric turret mounted lower controls with override.
• Continuous rotation.
• Open center hydraulic system
• Non-relube bearings used throughout.
• Integral hydraulic oil reservoir with dual sight gauges and 10 gallon capacity.
• Emergency Power 12V DC hydraulic system.
• Master / Slave hydraulic leveling with upper and lower controls

Stabilization:

• Front and Rear “A” frame mounted outriggers
• Upper boom storage cradle with ratchet type tie down strap and tubular rubber platform support.
• Full Body Harness and 6’ Fall Arresting Lanyard.
• Standard white urethane paint.
• Two operator’s manuals and two service manuals.
• ANSI A92.2 Data plate.
• PTO operated hydraulic pump


Blue Ridge Custom Flat Bed Body

• Steel decked, Flat Bed Body
• 16’ Long
• 96” wide
• Cross member 12” on center
• 5” Long body sills
• .125” steel floor
• ICC Bumper
• Recessed LED Lighting, shock mounted

• Notched, body access stepway with aluminum grab loop railing
