DTAX-39-FP Insulated 39’ telescopic / articulating aerial platform lift.

• 44’ of working height
• 46 kV, Category Insulation
• Platform capacity of 350 lbs.
• Bucket mounted controls to include:
• 4 Axis Single Hand Control
• Tool selector
• Hydraulic tool outlets with MassDOT compatible fittings
• Emergency Power
• Bucket Cover
• Bucket Liner with integral step
• 180º platform rotator.
• Full pressure turret mounted lower controls with override.
• Continuous rotation
• Five GPM open center hydraulic system
• Chassis insulating system
• Lower Boom Insulating Section
• Fiberglass inner telescopic boom
• Non-relube bearings used throughout
• Integral hydraulic oil reservoir with dual sight gauges and 17 gallon capacity
• Closed 24” x 24” x 42” fiberglass platform with one curbside step
• Emergency Power Insulated 12V DC hydraulic system
• Master / Slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue
• Rear Torsion Bar
• Front Timbren Load Bushings
• Upper boom storage cradle with ratchet type tie down strap and tubular rubber platform support
• Body belt and lanyard.
• Standard white urethane paint.
• Two operator’s manuals and two service manuals.
• ANSI A92.2 Data plate.
• 10 Gallon internal hydraulic tank
• PTO driven hydraulics
• Open circuit operation
• Aerial painted, per MassDOT Safety Yellow

• 132” long x 42” high x 94” wide
• 84” CA with dual rear wheels
• 42” compartment height
• 18” compartment depth
• 54” load space width
• 25” top of body to the top of the floor
• Vinyl rock guards
• Gas fill cup
• Removable wheel panels
• White compartment interiors
• LED exterior stop/tail/turn, backup and ICC lighting
• Automotive grade door gaskets
• Aluminum forward bulkhead
• Aluminum tailskirt
• Stainless steel hinges and hardware
• Stainless steel automotive style rotary latch
• Brackets for adjustable shelves in all compartments
• One piece molded doors
• Recessed door seal system
• Flow thru ventilation system
• Treadplate floor
• Tailboard brackets
• MassDOT “Safety Yellow” Gel Coat exterior
• Flex Glo Compartment Lights

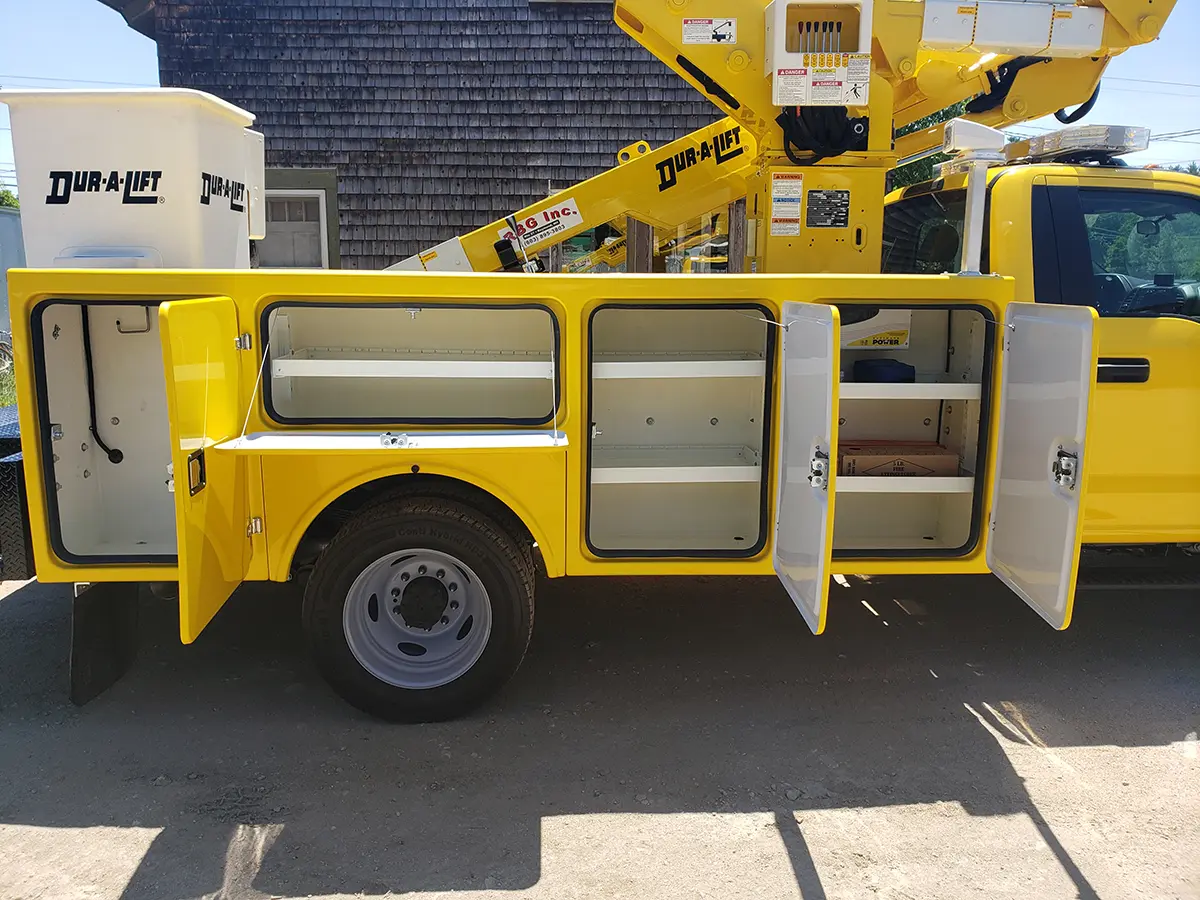

• Streetside Compartmentation:
• 1st vertical

• 27” wide x 42” high x 18” deep
