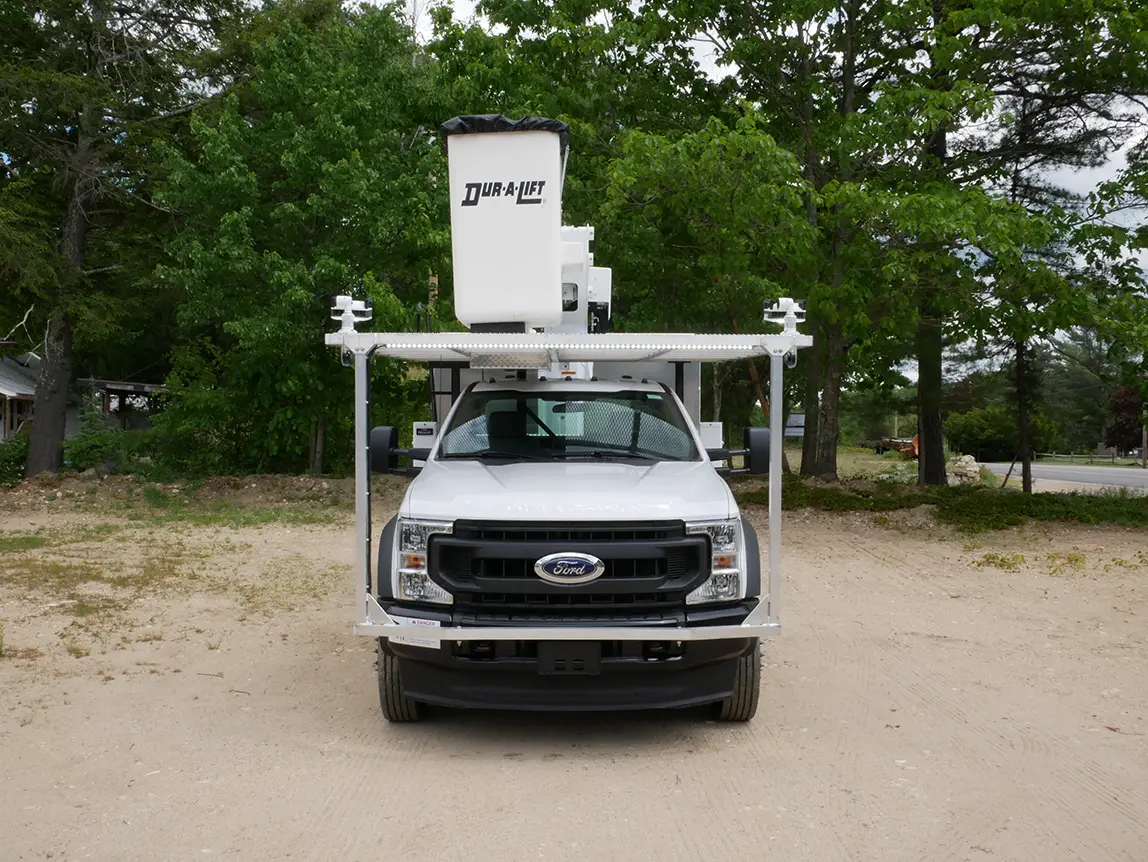

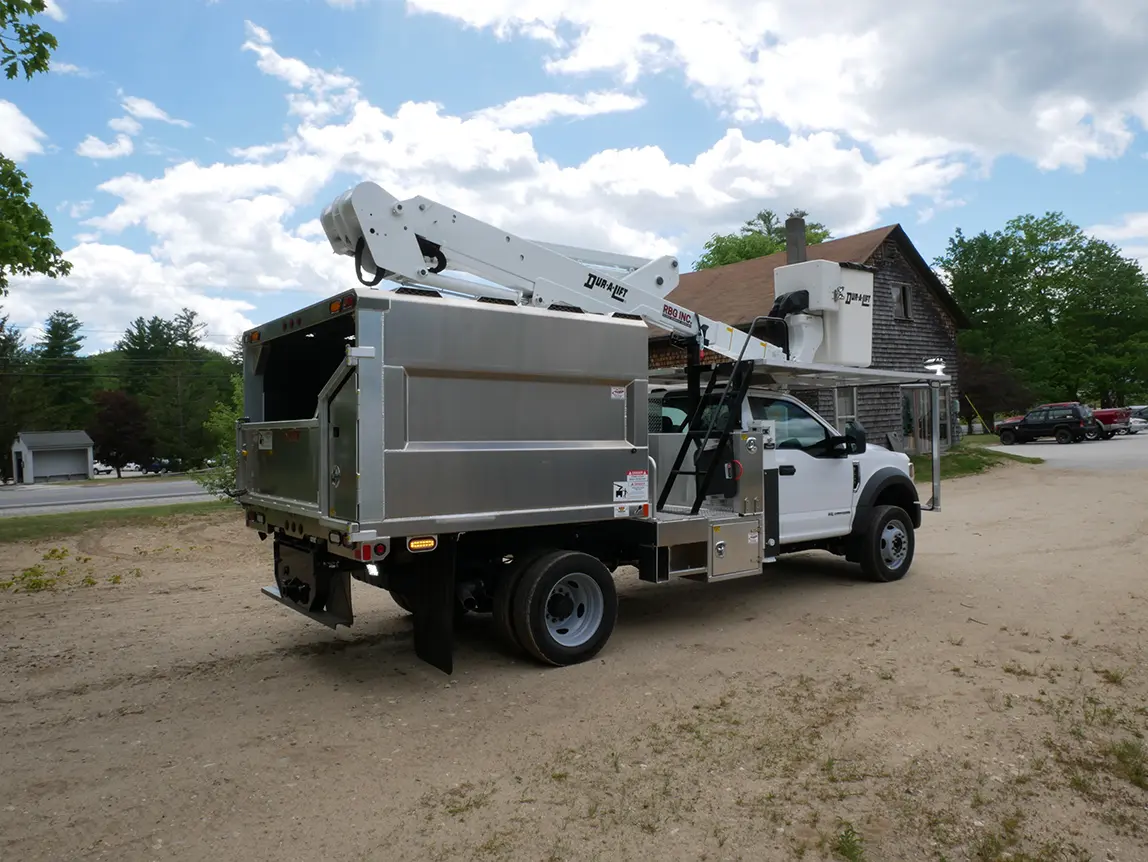

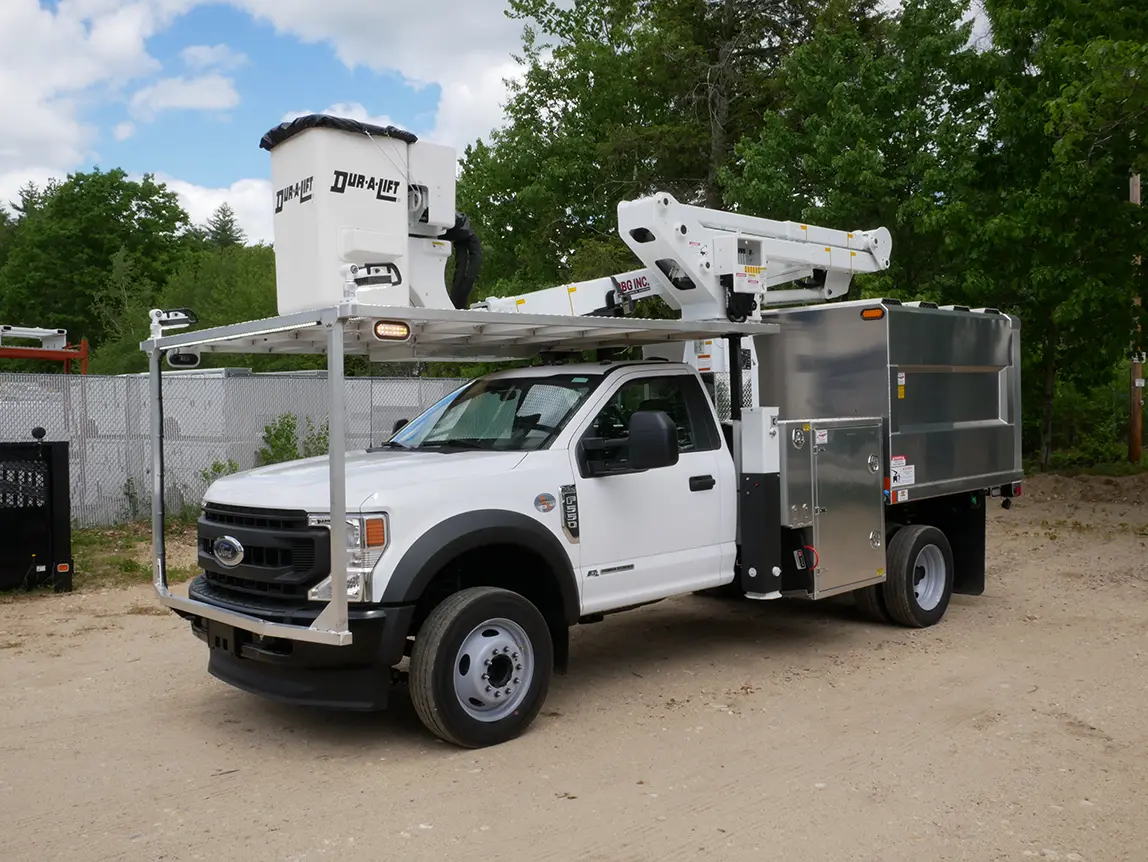

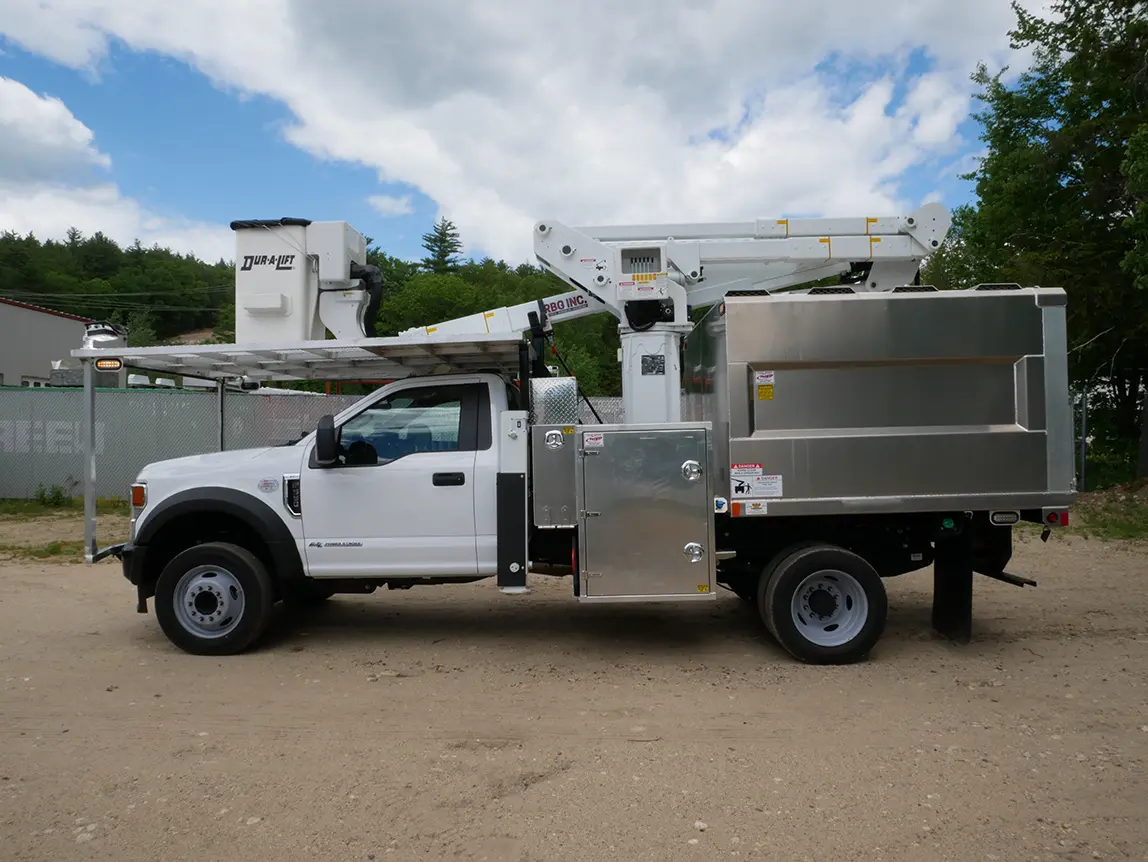

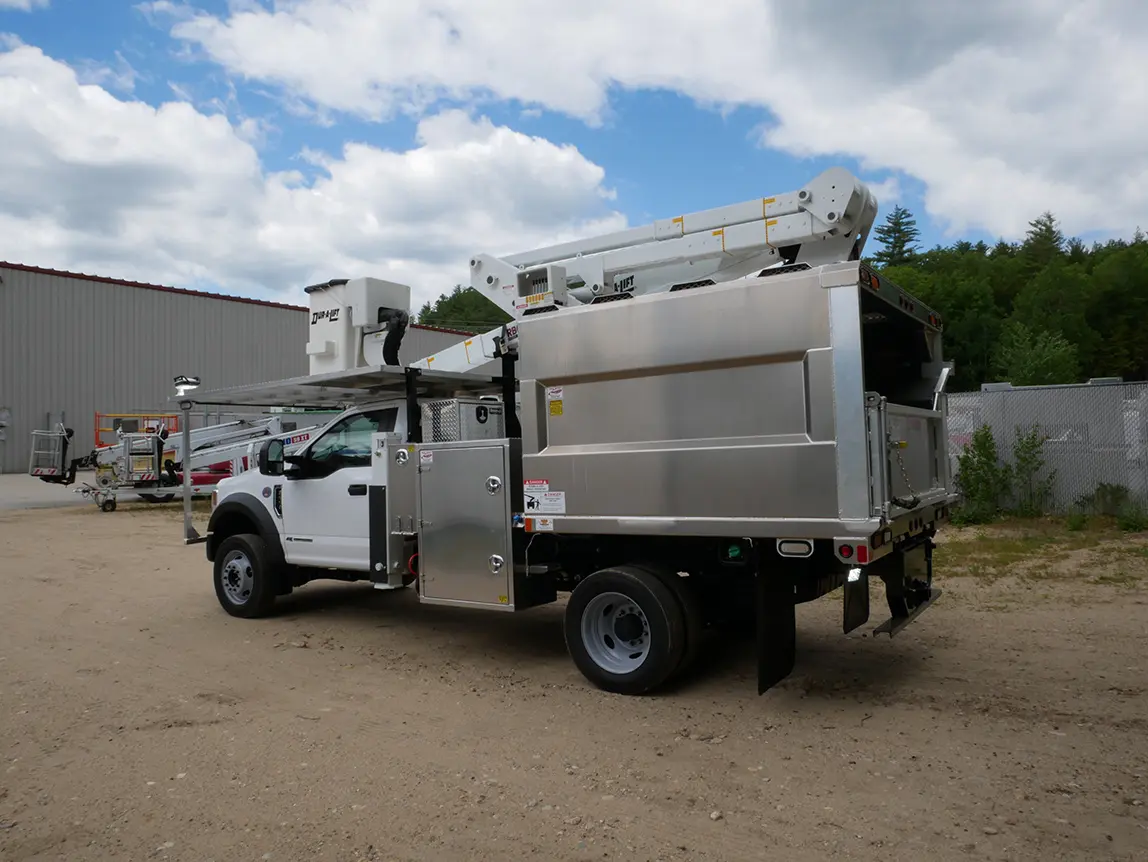

Dur-A-Lift Urban Forestry Unit

• Platform Height, Minimum 45’
• Working Height, Minimum 50'
• Horizontal Reach 30’
• Approx. Stowed Travel Height: 10'
• Extension Boom Travel: 120”
• Main Boom Travel: -25° to +78°
• Articulating Boom Travel: 0° to +80°
• Basket Capacity end or rotating basket: 350 lbs.


Side Compartments:

• 11” wide x 26” high x 96” wide
• Transverse across the front
• Fixed shelf centered in the compartment
• Flip down doors

Street Side:

• Mounter aft of the pruner storage
• 36” wide x 47” high x 18” deep
• Single, vertically hinged door
• Four (4) “J” rope hooks
• Three (3) slide in adjustable shelves in the lower compartment area

Curbside:

• Under access deck
• “L” bracketed expanded metal step
• 36” wide x 18” high x 18” deep
• Single, vertically hinged door

• Vented in the rear for combustible storage
