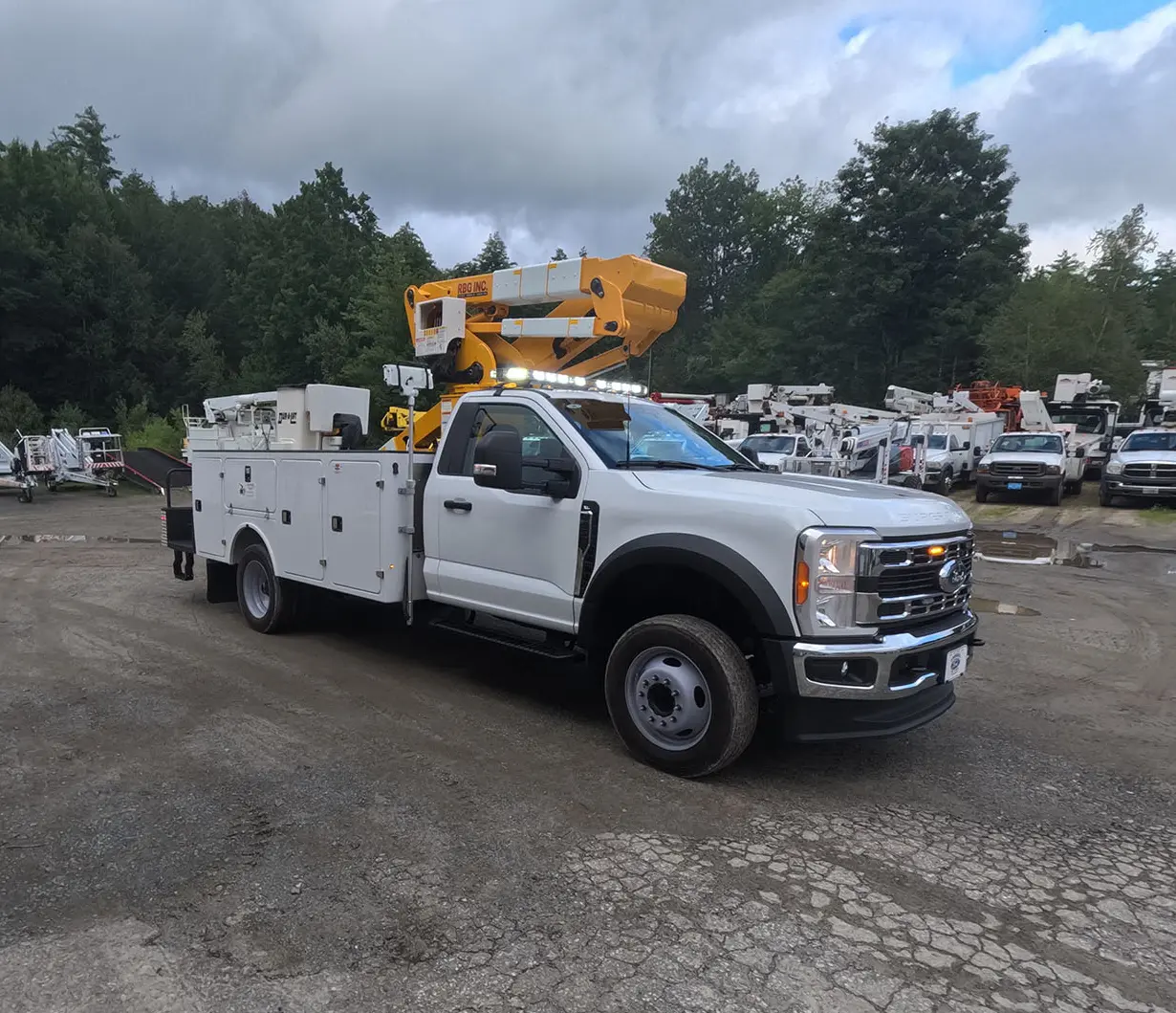

Dur-A-Lift DTAX-39FP Telescopic Articulating Insulated Aerial Lift

• Working Height 44’
• Side Reach 28’
• Extension Boom Travel 110.5”
• Fiberglass Extension Boom.
• 24" X 30" X 42" Fiberglass Basket, duck under access, end hung basket. 350# capacity
• 180° Basket rotator.
• 360° Continuous Rotation
• Proportional, Open Center Hydraulic Controls.
• Lower Control Levers with Upper Control Override.
• 4 Axis Joysticks.
• Hydraulically Leveled Basket.
• 17 Gallon Oil Tank with dual sight gauge and gate valve in suction line.
• Custom paint finish
• Non-relube, Maintenance-Free Bushings, Spherical Cylinder rod ends.
• Safety Harness and 4' Lanyard.
• Open Center Hydraulic System.
• 12v D.C. backup.
• Bucket cover


BrandFX 84DLS Body 132 x 40 x 18:

• 132” long x 40” high x 18” deep compartments
• 1/8” Aluminum loadbed floor
• 1/8” Aluminum bulkhead
• Aluminum frame
• Gelcoat white finish
• Type 304 stainless hardware
• Nonskid compartment tops

• Aluminum tailskirt
